Fully Assembled - Free Shipping to your door by car carrier

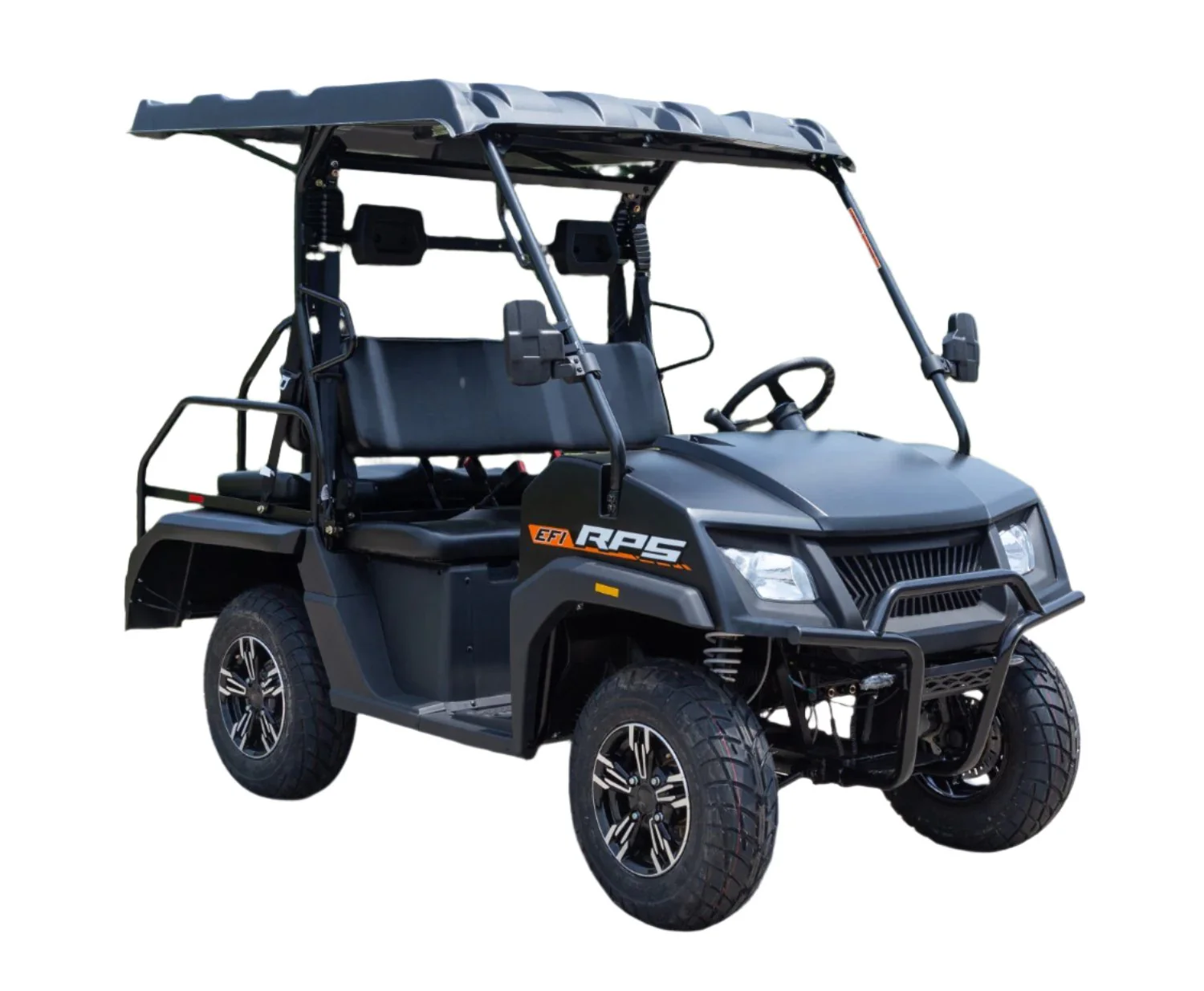

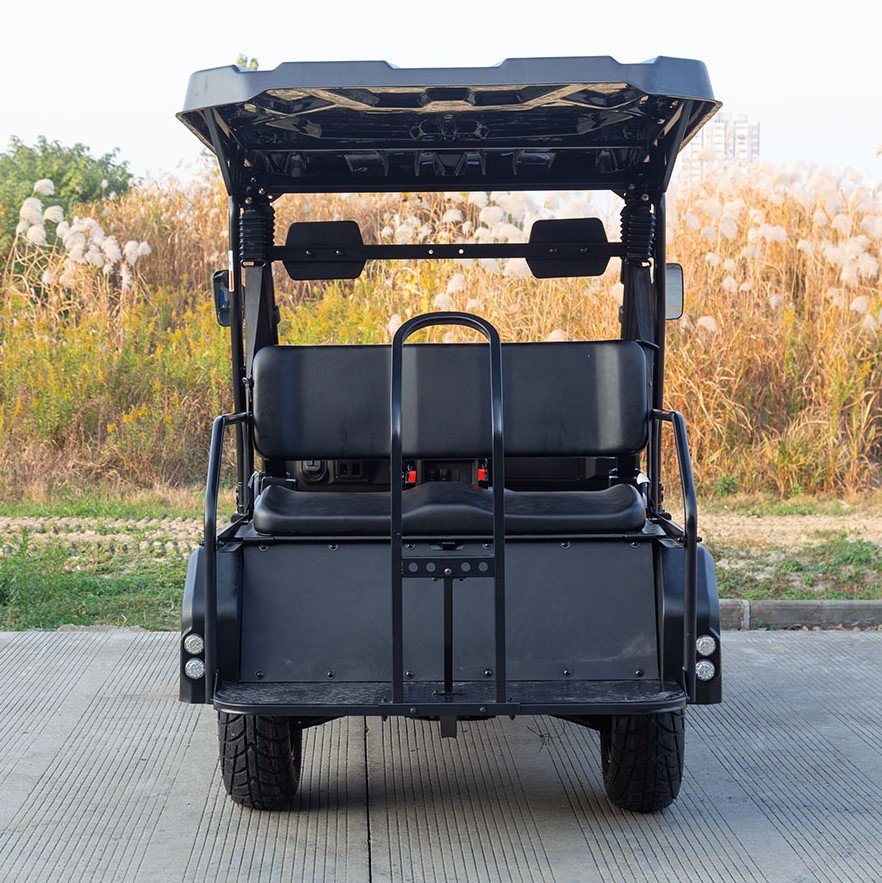

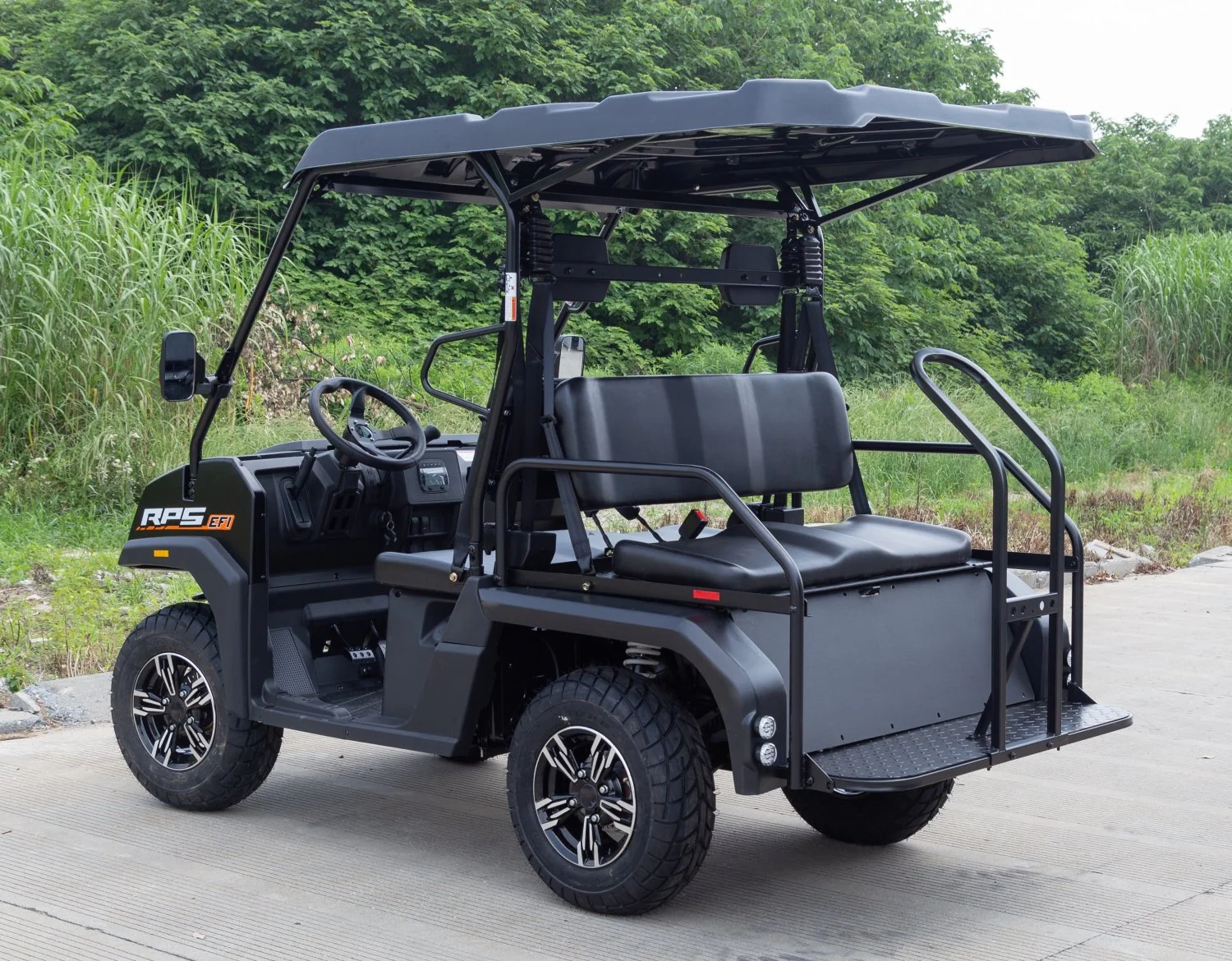

The SSV 200 EFI Gas Golf Cart offers a powerful 177cc 12hp oil-cooled engine with electronic fuel injection, providing smooth and efficient operation. Its MacPherson suspension and rear shaft-drive H/L Speed transmission make for a comfortable and responsive ride. Equipped with deluxe alloy wheels and a digital speedometer, this ATV is ready to take on any terrain with ease.

Specifications

Overall Vehicle Size (L x W x H) mm: 2362×1397×1870

Ground Clearance (mm): 260

Wheelbase (mm): 1620

Weight with full equipment (kg): 390 kg

Front/Rear Brakes Four Disc brake

Drive mode: Front / Rear Shaft Drive

Front Suspension: MacPherson

Rear Suspension: Dual A-Arm

Dump bed size (L x W x H): 711×1210×337 (N/A w/ 4 passenger back seat model)

Engine specification

Cooling Air & Oil

Engine capacity (cc) 177.3 cc

Volumetric Compression Ratio 9.6:1

Drive System: Shaft Drive, H/L Speed Transmission

Engine Type Single Cylinder 4-Stroke, Balance Shaft

Fuel System/Battery Electronic Fuel Injection

Ignition type T.C.I

Start type Electric

Ignition Coil ECU

Horsepower 12

Transmission/Final Drive CVT F/N/R; Chain

Maximum power (kw/r/min) 9.0kW/7000～7500RPM

Maximum Torque (Nm /r/min) 13N·m/6000～6500RPM

Top Speed (km/h): 45 km/h
