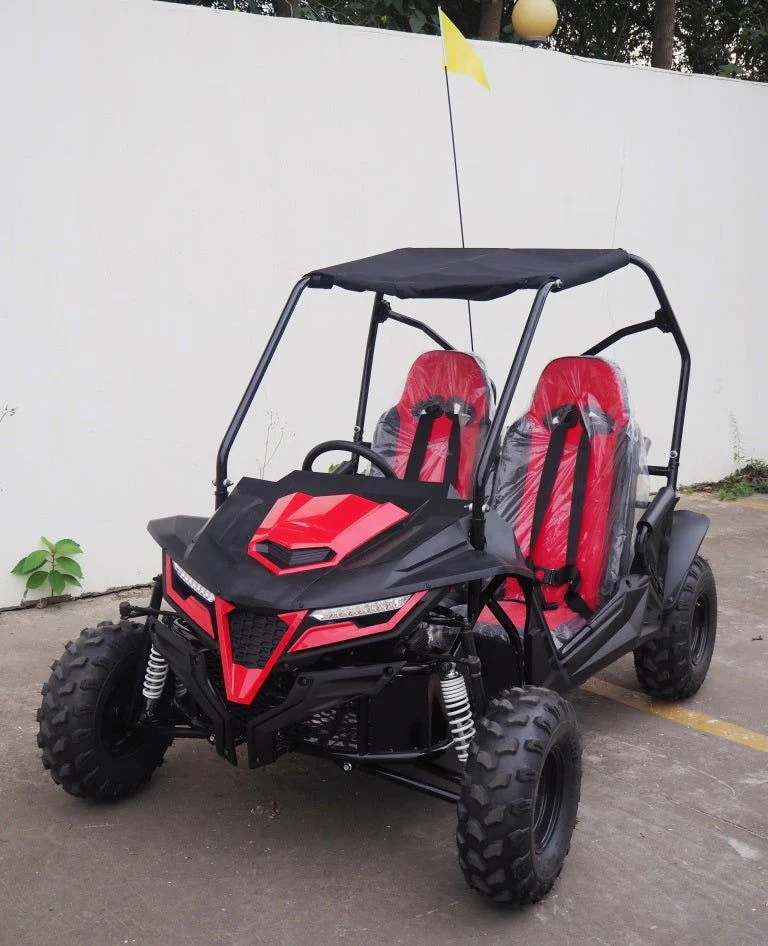

The Cheetah 8 is equipped with a 208cc, 7.5 HP horizontal OHV Engine; Torque converter CVT transmission allows this beast takes off with ease. Its top speed can reach up to 32M/H. The manual choke allows this unit to start easy even under cold temperatures.



Add a Windshield and Top Light Bar if you like.

True to its namesake, the Cheetah is sleek, powerful, fast and agile with the power plant, drivetrain, suspension of a high-performance go-kart and the functionality of a utility vehicle. Extra-long, independent front swing arms, a double ball joint, articulating rear suspension and ample ground clearance lets you glide over the roughest terrain and performing like independent suspension making it much harder to flip over. Adjustable high back bucket seats, and adjustable steering wheel will accommodate all shapes, sizes and skill level of the wild animal tamers in your family.

Automatic CVT with reverse, hydraulic disk brake, parking brake, fenders, canopy top and cargo rack are just a few of the many special features. Add the dramatic body panels and the LED light package with flowing turn signals and this is one cool cat!

The TrailMaster Cheetah 8 is a little bit smaller in size comparing to the Cheetah 200. It targets from youth to adult up to 5’8” while comparing the Cheetah 200/200X up to 6”2!

FEATURES:

• Sporty stylish design
• Articulating rear suspension equipped with anti-flip pull belts, much harder to roll over comparing to other rear solid axle machines
• Youth/Adult size
• Adjustable driver seat: pedal to seat back adjustable from 32” to 39”, fits person up to 5’8”
• Pull cord kill switch
• 4-point safety seat belt
• Manual choke
• LED headlight and turn signal
• Electric start with pull start backup
• Fully automatic with reverse, 7.5 HP ail cooled engine
• Individual sports seats
• Bikini sunshade top
• Rack and pinion steering wheel
• Hydraulic disc brake
• Max speed 32 m/h
• Parking brake
• Large rear utility rack

SPECIFICATIONS:

EPA certificated
Engine type: 4-stroke, single cylinder, air cooled, Horizontal OHV Engine
Displacement: 208cc, 7.5HP
Max HP: 7.5hp/3600rpm
Max torque: 8 lb ft/2800rpm
Bore x stroke: 2.76x2.13 inches
Max speed: 32 mph
Climbing ability: 12 degrees
Ignition: C.D.I
Starting system: Electric or Pull
Battery: 12V 10Ah
Carburetor brand: JF210N.9.1C
Engine oil: SAE 15W-40
Clutch: Automatic torque converter CVT with reverse
Driveline / Driving wheel: Chain / Dual wheel drive
Suspension F / R: Double A-arm / swing-arm
Brake: Rear disc
Tires, F / R: 18X7-8 / 18X7-8
Wheel: Steel
Fuel capacity: 1 gal
Weight, G.W. / N.W.: 485 / 400 lbs
Max load: 400 lbs
Wheelbase: 57 inches
OA L x W x H: 79x51x56.3 inches
Height to seat: 15.7 inches
Min ground clearance: 4 inches
Pedal to seat back distance: 32” to 38”
Packing size: 79X45X26 inches
